Type 2 16A portable charger (adjustable current)

Type 2 16A portable charger (adjustable current)

Electrical Performance

Current	16A  (8/10/13/16A)
Voltage	250V
Power	3.5KW
Frequency	50/60Hz
Charging interface	European standard
Cable material	TPU
Total cable length	5 meters
Operating temperature	-30℃~+50℃
Plug	Schuko
Degree of protection	Charging gun: IP55, charging station: IP65

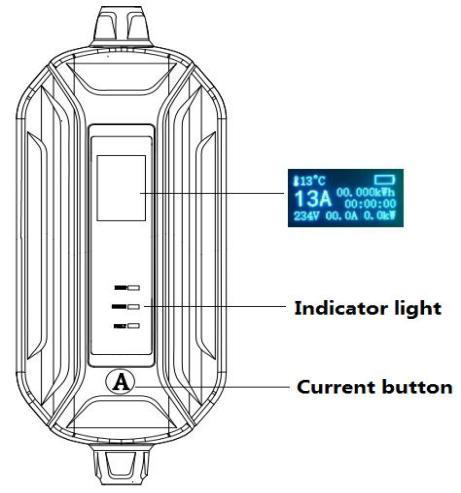

User interface	LED indicator + LCD display(0.96 inch)



Model NO.	Option	Net weight (KG)
AC.530.032.01	RCD:Type A	2.3
AC.530.032.02	RCD:Type A+DC6mA	2.3

Product Features:
1. Carry with you,Plug-and-charge, convenient and fast.
2. Equipped with 0.96-inch display, real-time display of SOC information and fault indication
3.With over-current protection, over-voltage protection, under-voltage protection, leakage/earth protection, over-temperature protection, etc.

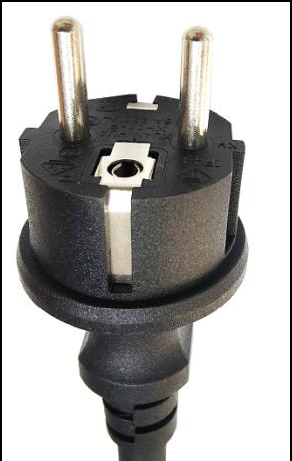

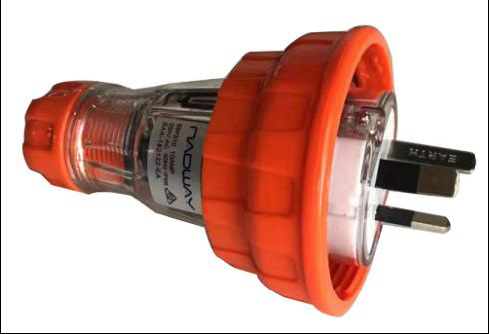

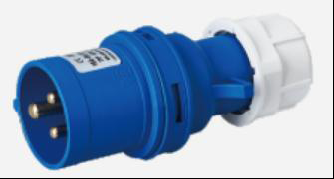

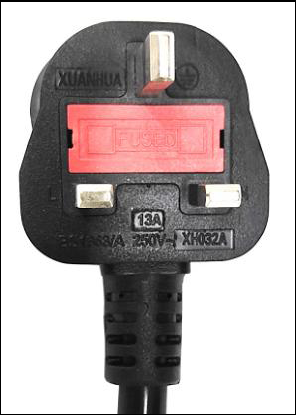

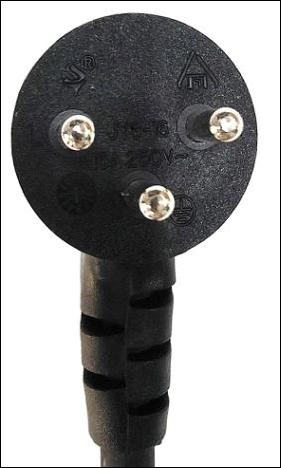

Power plug type requirements:



Charging instructions:

1.Connect the input Connect wall power

2.Put the charging gun Connect the on-board charging interface

3.The interface and indicators of the charging box show normal

4.The vehicle is charging

5.Unplug the charging gun

6. Unplug the input plug


Package:


By individual packaging，the product is packed in a 35*35*12 inner box (0.4KG), and then 5pcs in a 38*38*62 master box (1.7KG)
